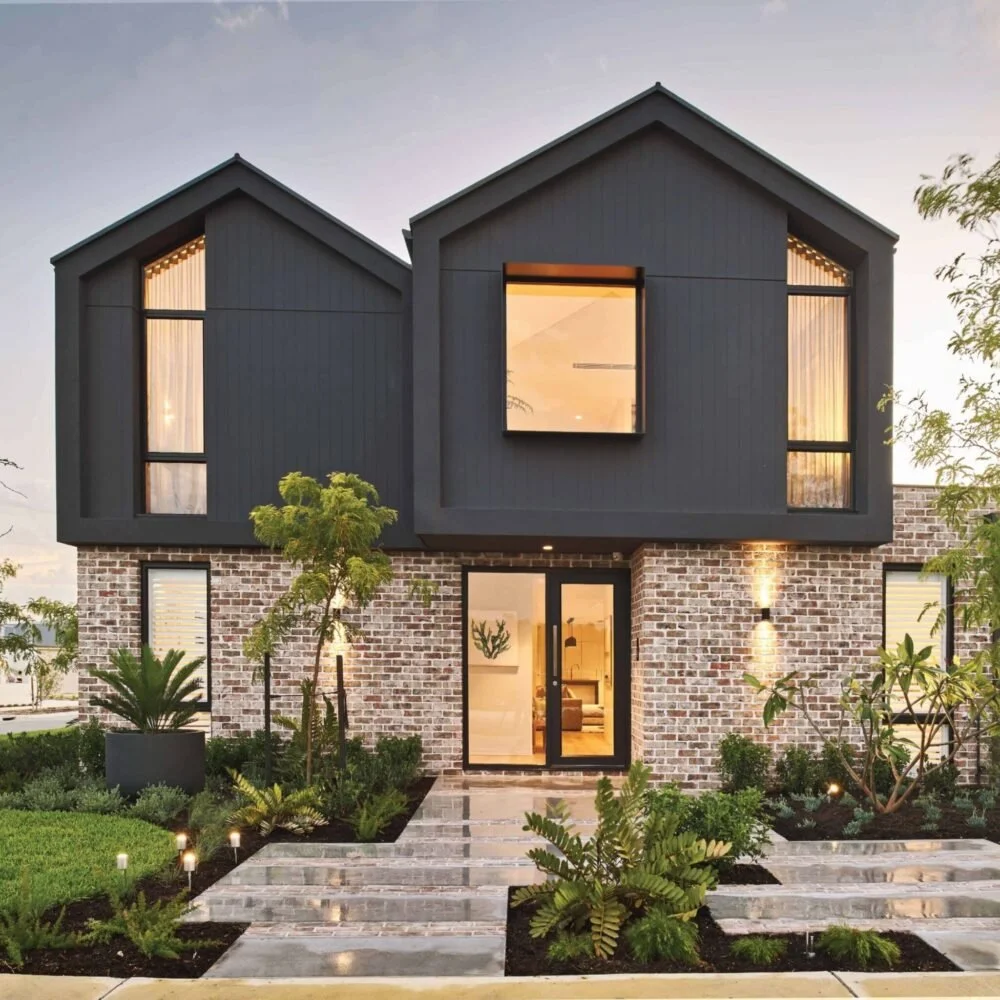

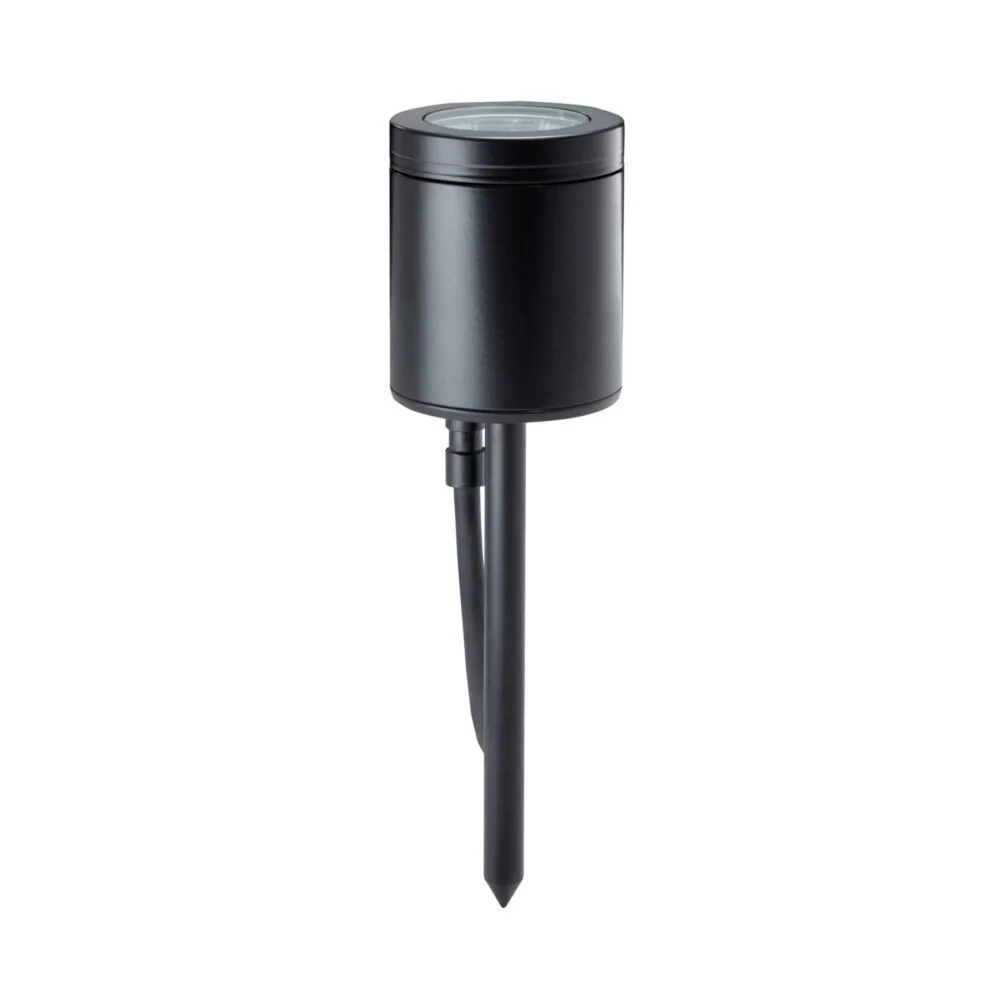

The Spike Spot Adjustable has been designed for easy installation into the earth and is ideal for illuminating a bush, tree or any landscape feature. The fully adjustable head allows 360-degree rotation and 0-90 degree elevation.
/S1050mA CC Input – Series Wired 6Vf
/D312VAC Input 350mA - Parallel Wired 2W
/D712VAC Input 700mA - Parallel Wired 4W
/D2424VDC Input – Parallel Wired 4W
/D1012VAC Input 1050mA - Parallel Wired 6W
SOLID METAL
/SS316 Stainless Steel
/COPSolid Copper
ALUMINIUM POWDERCOAT COLOURS
/EBKBlack
/EBZBronze
/EDGDark Grey
/ECTCorten
/EOGROlive Green
/ESTARSilver Star
/EWHWhite
/FSFine Silver
/EWBWhite Birch
/15 Degree
/25 Degree
/38 Degree
/60 Degree
/2200K
/2700K
/3000K
/4000K
/CLwith Clear Lens
/LFwith Frosted Lens
/300300mm Spike (12")
Standard 150mm Spike (6")
/CJKCable Joint Kit
/GGGlare Guard More Info
/HCLHex Cell Louvre
/SNTSnoot More Info
with Adjustable Knuckle (Standard)
/LKNwith Locking Knuckle
LED CHIPCree® XHP-50-2 Plug and Play field replaceable LED boardLUMINAIRE OUTPUT*600 lm @ 1,050 mA (6 W)
420 lm @ 700 mA (4 W)
240 lm @ 350 mA (2 W)
Delivered
LUMENS PER WATT*100 lm/W
Delivered
LED LIFE EXPECTANCY50,000 Hrs @ L70CRI (3000K)90+ StandardINGRESS PROTECTION
IP66
IP67
WARRANTY
Aluminium Components - 5 years
Electronics - 5 Years
Solid Copper Components - 10 Years
Stainless Steel Body - 10 years
Excludes third party lamps and power supplies.
STANDARDS
CE
IEC/BS/AS/NZ 60598
UL 2108
UL 1838
